Bending Resistance
Running speed:≤4/6m/s
Travelling height: ≤80/200m
Loop diameter:≤700mm
Abrasion Resistance
-15~+70℃
3 million bending test
-40~+90°℃
RoHS
CE
Tüv
GB/T 5023.6
IEC60227－6
SYV75:750Ω
Cat.5e or CAT6
Multimode or single-mode fiber

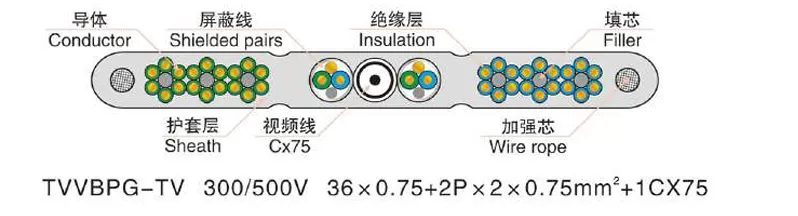

| Conductor | Copper |
| Insulation | PVC |
| Shield | Copper or Tinned copper |
| Sheath | PVC for elevator cable |
| Rated voltage | 300/500V |
| Voltage withstand test | 2000V/5min |

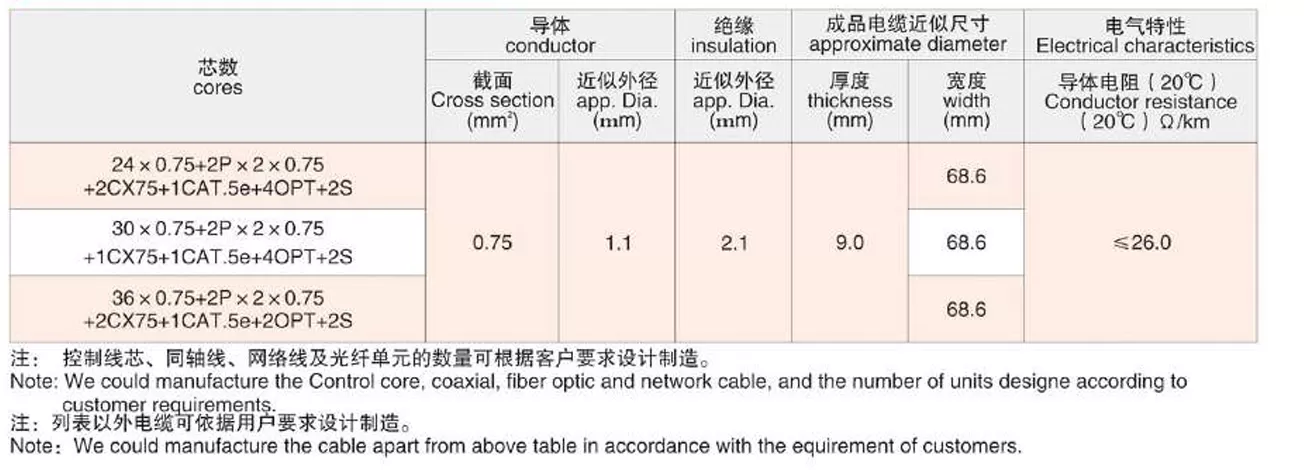

Note: We could manufacture the cable apart from above tabla in accordance with the equiremant of customers.
