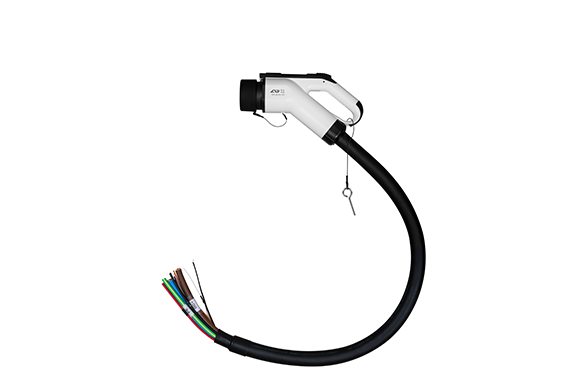

GB/T EV DC TPU Charging Cable

GB/T EV DC TPU Charging Cable

Mechanical Life

Mechanical life: no-load plug>10000times

Impact of external force: can afford 1m drop and 2T vehicle run over pressure

Applied Material

Shell material: thermoplastics, TPU

Retardant grade UL94-V0.

Pin: Copper alloy, silver + top of the thermoplastics

Environmental Performance

Operating temperature: - 30°C ~+50°C

Electrical Performance

The rated current: 80A, 125A, 150A, 200A, 250A, 300A

The rated voltage: 1000V

Insulation resistance: >2000MQΩ(DC1000V)

Pins temperature rise:<50K

Withstand voltage: 4500V(DC+/DC-/PE)

Contact impedance: 0.5mΩMax

GB/T  EV DC CHARGING Features

  • Conform to the provisions and requirements of <Connection set for conductive charging of electric vehicles> GB/T 20234.2-2015.

  • Have a electromagnetic locking device, have functions of signal feedback.

  • Have one or two PTC (PT1000) thermistor (can match with NTC or Temperature control switch).

  • The head of pins using safety insulation design to prevent direct contact with the hand.

  • Excellent protection performance, prodection grade achieved IP55 (working condition).

  • Applied double color coating technology, personalized custom a variety of colors.


GB/T EV DC Charging Cable Parameter

Product TypeEV Charging Cable
Rated Current80A, 125A, 150A, 200A, 250A, 300A
Rated Voltage1000V
LengthRegular 5m, can be customized
ColorBlack or white
Warranty12 months
CertificateCANS
Packaging DetailsStandard export wooden case or carton, can be customized
Delivery Time(days)Within 15 days, if qty is over 500pcs, to be negotiated
