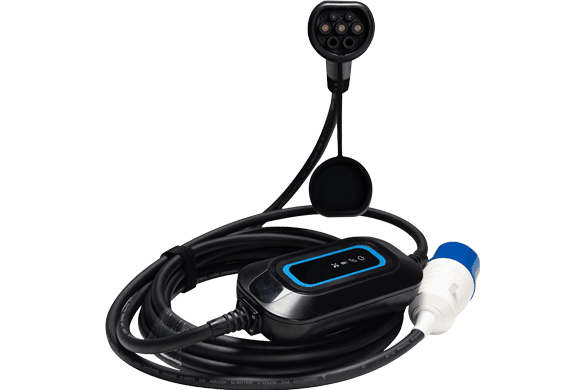

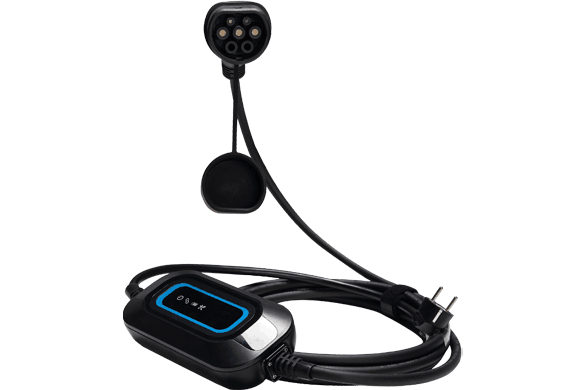

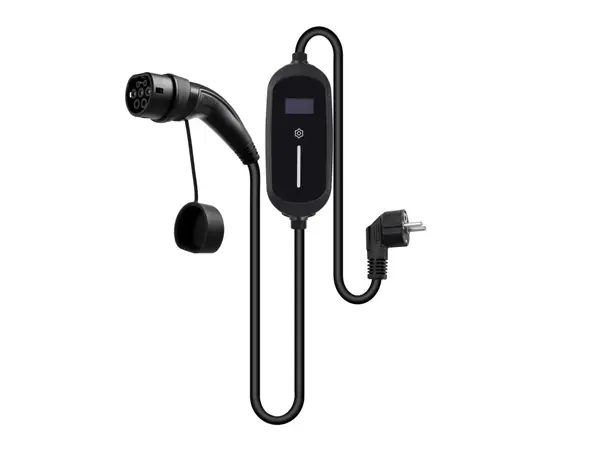

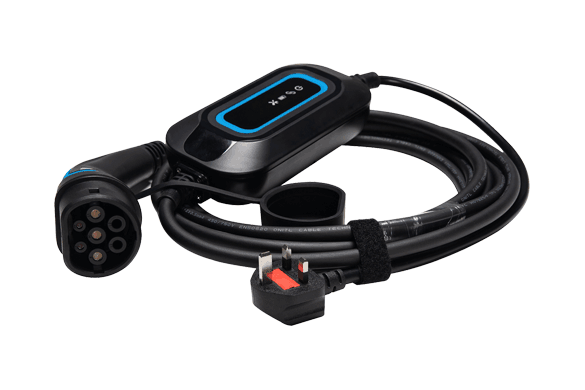

EV Portable Charger Type 2 Mode 2

EV Portable Charger Type 2 Mode 2

Mechanical Properties

Mechanical life: no-load plug>10000times

Impact resistance: be able to afford 1m drop and 2tons vehicle run over pressure

Electrical Performance

The rated current: 6A,8A,10A,13A,16A

The rated voltage: 110V/250V AC
Insulation resistance: >1000MΩ(DC500V)
Pins temperature:<50K
Withstand voltage: 2500V

The Function of IC-CPD

Over-voltage, under-voltage protection
Over-current protection
Earth leakage protection
Ground protection: continuous monitoring grounding protection
Over-temperature protection: break the circuit when the temperature is over 85℃ with continuous 3S

Applied Material

Shell Material:thermoplastics, flame retardant grade UL94-0

Environmental Performance

Operating temperature: -30℃~+50℃

EV Portable Charger Type 2 Mode 2 Features

  • Conform to the provisions and requirements of IEC 62196-2. High compatibility. It can charge all EV with Type 2 inlets, correctly and effectively.

  • Using riveting pressure process with none screw, have a beautiful appearance. Hand-held design conform to the ergonomic principle, plug conveniently.

  • The control box panel adopts display function, the current and voltage, the charging state and the temperature of the circuit board in real time.

  • Excellent protection performance, protection grade of IC-CPD achieved IP66 and achieved IP55 of plug (working condition) High security. It has passed all tests of TUV. There are all kinds of protective measures to ensure the safety for every user.

  • Adopted double color coating technology, custom color accepted (regular color orange, blue, green, grey, white).

  • Easy operation. Simply connect the plug with the EV inlet, then the charger will automatically detect the connection status and handshaking protocol automatically, and starts charging.

  • Switchable currents. Customers can choose an appropriate charging current according to the demand.

  • Containing the intelligent chip. It can automatically repair minor charging problems while charging. When a fault occurs, the lights will blink in different ways to indicate different problems.


Application of EV Portable Charger Type 2 Mode 2

Apply to Vehicle

For Tesla model3, for Tesla Model S, for Tesla Model X, for BAIC EU-Series, for BYD Yuan/S2 EV, for BYD e5, for Chevrolet Volt, for Mia, for Mia Electric Van, for Mitsubishi OUTLANDER PHEV, for Nissan NV200 SE Van, for Nissan leaf, for SAIC Baojun E-Series, for SAIC Roewe Ei5 EV, for BMW 530e/Le, for Renault Zoe, for Hyundai Kona EV, for BMW i3, for BYD Tang PHEV, for Chery eQ EV, for Toyota Prius PHEV, for Volkswagen e-Golf, for Geely Emgrand EV, for Great Wall Ora R1 EV



EV Portable Charger Type 2 Mode 2 Parameter

Product TypeTYPE2 EV Portable Charger Mode2
Rated Current

6A, 8A, 10A, 13A, 16A

Rated Voltage110V/250V AC
Power2.2KW, 3.6KW
Cable SpecificationH07BZ5-F3X2.5mm²+2x0.5mm²
LengthRegular 5 m, custom length accepted
Colororange, blue, green, grey, white, custom color accepted
Warranty12 months
CertificateCE/TUV(Rheinland)
Packaging DetailsStandard export wooden case or carton. Or as customer requirements
Delivery Time(days)Within 15 days, if quantity>100, to be negotiated
