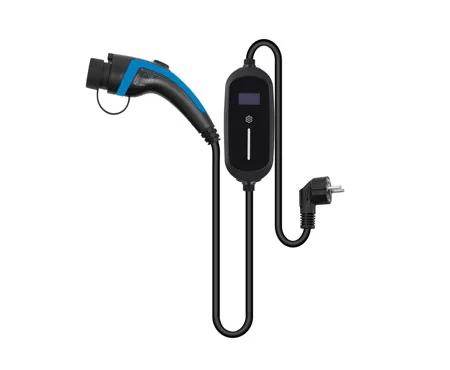

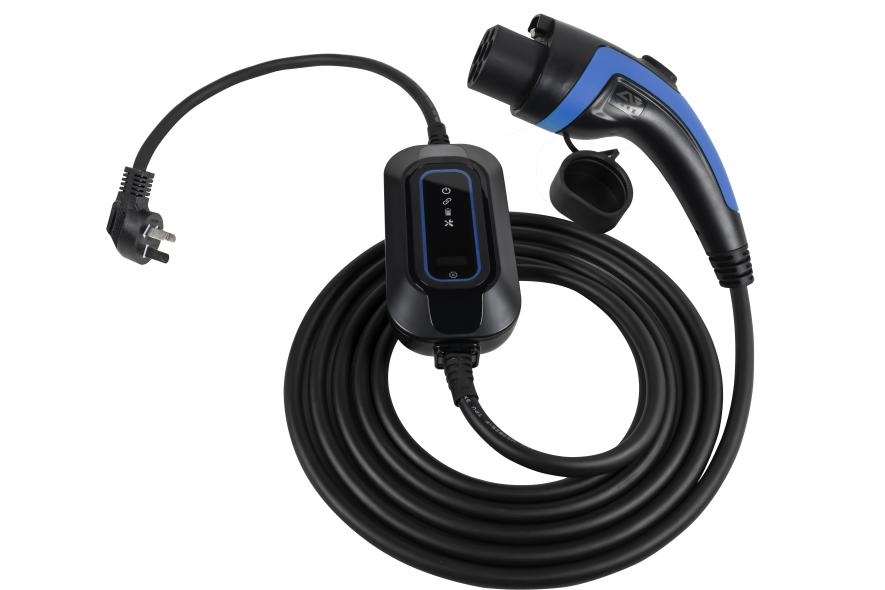

GB/T Portable EV Charger

GB/T Portable EV Charger

Mechanical Properties

Mechanical life: no-load plug>10000times

Impact resistance: be able to afford 1m drop and 2tons vehicle run over pressure
Insertion and extraction force:<100N


Electrical Performance

Rated current: 13A/16A

Rated voltage: 220V

Insulation resistance: >1000MΩ(DC500V)
Withstand voltage: 2500V
duty cycle: 21.67%


The Function Of IC-CPD

Over-voltage, under-voltage protection

Over-current protection

Earth leakage protection

Ground protection: continuous monitoring grounding protection

Lightning protection

Over-temperature protection:break the circuit when temperature is over 85°C and continuous 3s.


Raw Material

Shell material: thermoplastics, flame retardant grade UL94-0


Environmental Performance

Temperature: -30℃~+50℃

GB/T Portable Ev Charger Features

  • Conform to the provisions and requirements of GB/T20234.2-2015, GB/T 18487.1-2015 it can charge all EV manufactured in china, And convert to the applicable point current correctly and effectively with high compatibility.

  • Using riveting pressure process with none screw with beautiful appearance. Hand-held design conform to ergonomic principle, plug conveniently.  Customer is able to install the charger indoor or outdoor, according to actual demand. Firmly locking the charger on the installation backplane can prevent theft.

  • The control box layout USES the display screen function to display the current voltage, charging status and circuit board temperature in real time. Always check your safety, let you use rest assured.

  • Special internal waterproof protection performance, protection grade of IC-CPD achieved IP66and achieved IP55 of plug(working condition). The shell and IC-CPD can effectively insulate water from body and enhance the safety level even in bad weather or special circumstances.

  • Adopted double color coating technology, custom color accepted (regular color orange, blue, green, gray, white)

  • Keep the laser logo space for customer. Provide OEM/ODM service to help customer expand market easier


Application of GBT Portable Ev Charger

Apply to Vehicle


For Tesla Model3, for Tesla Model S, for Tesla Model X, for BAIC EU-Series, for BYD Yuan/S2 EV, for BYD e5, for Chevrolet Volt, for Mia, for Mia Electric Van, for Mitsubishi OUTLANDER PHEV, for Nissan NV200 SE Van, for Nissan leaf, for SAIC Baojun E-Series,  for SAIC Roewe Ei5 EV, for BMW 530e/Le, for Renault Zoe, for Hyundai Kona EV, for BMW i3, for BYD Tang PHEV,for Chery eQ EV, for Toyota Prius PHEV, for Volkswagen e-Golf, for Geely Emgrand EV, for Great Wall Ora R1 EV


Application in area


Commercial EV Charging/Workplace EV Charging, Hotels EV Charging, Home/Residential EV Charging, Public EV charging

AG ELECTRICAL EV Portable Charge acquires all safety and production certificates in electrical filed, ISO9001, ISO 14001, OHSAS 18001, GB/T20234.2-2015, GB/T 18487. 12015


GBT Portable Ev Charger Parameter

Product Type

EV Portable Charge

Rated Current

13A/16A

Rated Voltage

220V

Cable Specification

H07BZ5-F3X2.5mm²+2x0.75mm²

Length

Regular 5m, custom length accepted

Warranty

12 months

Certificate

GBT

Packaging Details

Standard export wooden case or carton. Or as customer requirements

Delivery Time(days)

Within 15days, if quantity>500, to be negotiated
