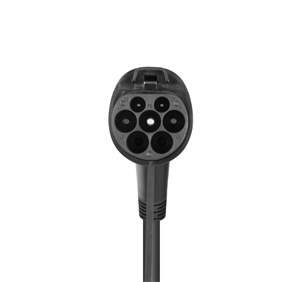

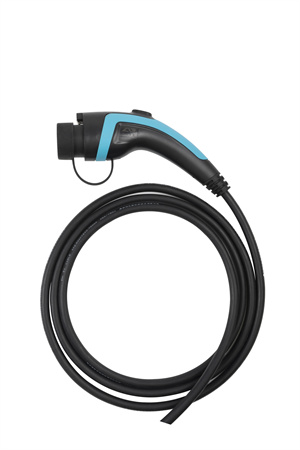

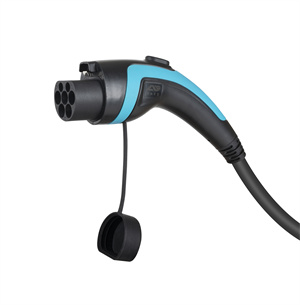

GB/T EV Charging Cable

GB/T EV Charging Cable

Mechanical Properties

Mechanical life: no-load plug>10000times

Impact resistance: be able to afford 1m drop and 2tons vehicle run over pressure
Insertion and extraction force:<100N


Electrical Performance

Rated current: 10A/16A/32A/63A

Rated voltage: 250V/440V/

Insulation resistance: >1000MΩ(DC500V)
Pins temperature:<50K
Withstand voltage: 2500V
Contact impedance: 0.5mΩMax


Raw Material

Shell material: thermoplastics, flame retardant grade UL94-0

Plug bush: copper alloy, silver plating+Top thermoplastics


Environmental Performance

Temperature: -30℃~+50℃

GB/T EV Charger Features

  • Conforming to the provisions and requirements of GB/T20234.2-2015, the GB/T EV charger can charge all EVs manufactured in china, correctly and effectively with high compatibility.

  • Using a riveting pressure process with none screw with beautiful appearance. Hand-held design conforms to ergonomic principle, plug conveniently. The head of pins using insulation design to prevent direct contact with the hand. The customer is able to install the gbt charging indoor or outdoor, according to actual demand. Firmly locking the charger on the installation backplane can prevent stealing.

  • Have one or two PTC (PT100) thermistor (can match with NTC or Temperature control switch)

  • XLPO for cable insulation prolonging the aging resistance life-span. TPU sheath improves the bending life and wears resistance of the cable. The best material in the market at present conforms to the latest European Union standards.

  • Special internal waterproof protection performance, protection grade achieved IP55 (working condition). The shell can effectively insulate the water from the body and enhance the safety level even in bad weather or special circumstances.

  • Adopted double color coating technology, custom color accepted (the regular color orange, blue, green, gray, white)

  • Keep the laser logo space for customers. Provide OEM/ODM service to help customers expand the market easier.


Application of GB/T EV Charger Cable


Apply to Vehicle

For Tesla model3, for Tesla Model S, for Tesla Model X, for BAIC EU-Series, for BYD Yuan/S2 EV, for BYD e5, for Chevrolet Volt, for Mia, for Mia Electric Van, for Mitsubishi OUTLANDER PHEV, for Nissan NV200 SE Van, for Nissan leaf, for SAIC Baojun E-Series, for SAIC Roewe Ei5 EV, for BMW 530e/Le,  for Renault Zoe, for Hyundai Kona EV,  for BMW i3, for BYD Tang PHEV, for Chery eQ EV, for Toyota Prius PHEV, for Volkswagen e-Golf, for Geely Emgrand EV, for Great Wall Ora R1 EV.


Application in Area

Commercial EV Charging/Workplace EV Charging, Hotel EV Charging, Home/Residential EV Charging, Public EV Charging.

AG ELECTRICAL GB/T EV Charger cable acquires all safety and production certificates in electrical filed, ISO9001, ISO 14001, OHSAS 18001, GB/T20234.2-2015.


GB/T EV Charger Cable Parameter

Product TypeEV Charging Cable
Rated Current10A/16A/32A/63A
Rated Voltage250V, 440V
PhaseOne Phase/Single Phase,Three Phase
Cable SpecificationH07BZ5-F3X2.5mm²+2x0.75mm²
H07BZ5-F5X6mm²+4x0.75(p2)mm²
H07BZ5-F3X6mm²+2x0.75mm²
H07BZ5-F5X16mm²+4x0.75(p2)mm²
H07BZ5-F5X2.5mm²+2x0.75mm²
LengthRegular 5m, custom length accepted
Colororange, blue, green, gray, white, custom color accepted
Warranty12 months
CertificateGB/T
Packaging DetailsStandard export wooden case or carton. Or as customer requirements
Delivery Time (days)Within 15days, if quantity >500, to be negotiated
