Product model: RFPC—SB series (ul2586), RFPC series (ul2517), RFPC—SB series (ul2517)
Features: it is mainly made of high flexible cable with excellent bending resistance and torsion resistance, scientific design and compact structure. It is mainly used for power transmission cable for long-term torsion and bending motion of robot. PVC sheath with high cost performance and long service life greatly extends the service time of cable.
Torsional resistance: it can withstand 10-20 million times of torsional movement, and the torsional amplitude can reach 270° and can be used normally without affecting the conduction speed of current and voltage.
Oil resistance: oil resistant and flame-retardant materials are used to adapt to all kinds of oil working environment to ensure the stability and safety of products.
Applicable environment: -15 ℃ ~ +105 ℃

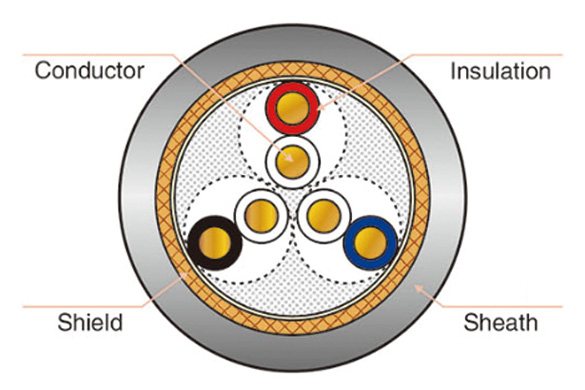

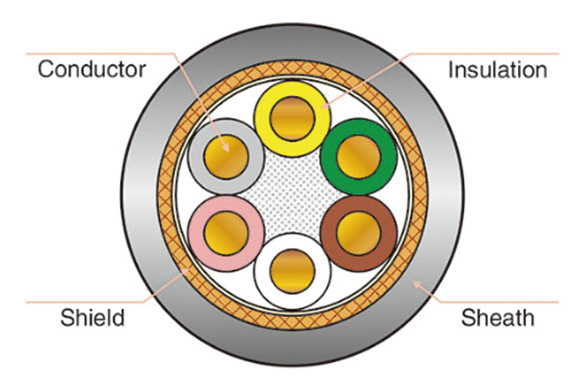

Conductor: Tinned annealed copper
Rated voltage: 300V, 600V
Insulation: ETFE
Voltage withstand test: AC2.0kV/min
Shield: Tinsel
Sheath: Flame-retardant Heat-resistance PVC
Insulation resistance: 100MΩ.km(20℃)
AG robot cable acquires all safety and production certificates in cable filed: UL/c-UL, ROHS, CE, Core identification
It has more than 12 core color repetition (white, brown, green, yellow, gray, pink, blue, red, black, purple, orange, transparent),
Each number corresponds to an insulation color separation (can be combined and matched).
Cable Scope
| Nominal cross section area | Conductor composition (diameter) | Diameter of insulation | Max.conductor DC resistance (20℃) | No.of pairs | Approx.overall diameter | Permissible current | Recommendation min.bend radius |
| AWG (mm²) | mm | mm | Ω/km | / | mm | A | mm |
| 21AWG0.5mm² | 3/33/0.08(1.14mm) | 1.94 | 46.9 | 2 | 6.8 | 7.6 | 40.8 |
| 3 | 7.1 | 7.5 | 42.6 | ||||
| 4 | 7.8 | 7.3 | 46.8 | ||||
| 6 | 9 | 6.6 | 54 | ||||
| 8 | 10.2 | 6.3 | 51.2 | ||||
| 12 | 12.9 | 5.8 | 77.4 | ||||
| 19AWG0.75mm² | 7/20/0.08(1.24mm) | 2.04 | 29.1 | 2 | 7 | 9.1 | 42 |
| 3 | 7.5 | 9 | 45 | ||||
| 4 | 8 | 8.6 | 48 | ||||
| 6 | 9.3 | 7.8 | 55 | ||||
| 8 | 10.9 | 7.3 | 65.4 | ||||
| 12 | 13.4 | 6.8 | 80.4 | ||||
| 17AWG1.0mm² | 7/30/0.08(1.50mm) | 2.3 | 18.3 | 2 | 7.7 | 10.5 | 46.2 |
| 3 | 8.1 | 10 | 48.6 | ||||
| 4 | 8.8 | 9.4 | 52.8 | ||||
| 6 | 10.1 | 8.6 | 60.6 | ||||
| 8 | 11.8 | 7.3 | 70.8 |
Note: Above are the standard products also we can on customer requirement.
