Product model:
TFPC—SB series (UL2464)-Towline Power Cable, TFEC series (UL20276)-Towline Encoder Cable, TFEC—SB series—Towline Encoder Cable
Features: Great flex cable, it used in robot and machine tool reciprocating encoder cables
Distance: ≤50m, Speed≤10m/s
Sheath: Flame-retardant Heat-resistance PVC, Flame-retardant polyurethane
Insulation resistance:100MΩ.km (20℃), 15MΩ.km (20℃), 20MΩ.km (20℃)
AG towline cable acquires all safety and production certificates in cable filed: UL/c-UL, ROHS, CE, Core identification.
It has more than 12 core color repetition (white, brown, green, yellow, gray, pink, blue, red, black, purple, orange, transparent),
Each number corresponds to an insulation color separation (can be combined and matched).
Bending resistance: it can withstand 20-50 million times of bending movement.
Torsional resistance: it can withstand 10-20 million times of torsional movement.
Oil resistance: oil resistant and flame-retardant materials are used to adapt to all kinds of oil working environment to ensure the stability and safety of products.
Hydrolysis Resistance: It can be used normally even in special environment.
Drag Resistance: The cable is strong and can be used normally under normal dragging, and will not break easily.
Applicable environment: - 40℃~+ 80℃

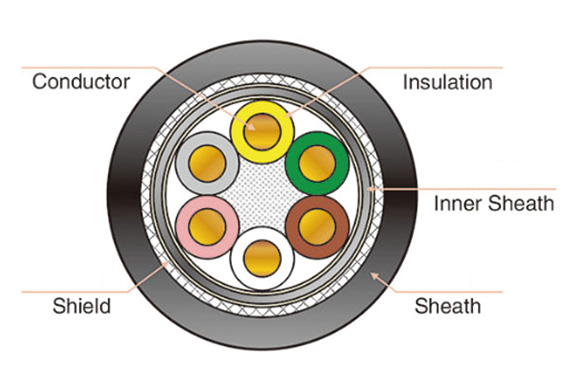

Conductor: Tinned annealed copper
Rated voltage: 30V, 300V
Insulation: Special Heat-resistance PVC, High strength elastomer
Voltage withstand test: AC2.0kV/min, AC0.5kV/min
Shield: Tinned annealed copper
Sheath: Flame-retardant Heat-resistance PVC, Flame-retardant polyurethane
Insulation resistance:100MΩ.km (20℃), 15MΩ.km (20℃), 20MΩ.km (20℃)
Installation of the cables: it wasn't twisted. Don't take out of cable along the direction above the reel or bobbin, because it will cause torsion force to the cable before wiring and affect cable life cycle.
The cable couldn't be packed too tight or too loose during wiring because the cable will be bent in tube and affect life cycle, if too loose it will have big friction to tube and wear cable sheath if too tight.
Suitable for installation under continuous reciprocating motion, especially in frequent bending situations in industrial environments such as: drag chain scenes, woodworking machinery, machine tool processing equipment, robot systems, industrial automation applications, logistics conveyor systems, crane machinery, etc.
| Nominal cross section area | Conductor composition (diameter) | Diameter of insulation | Max.conductor DC resistance (20℃) | No.of pairs | Approx.overall diameter | Permissible current | Recommendation min.bend radius |
| AWG (mm²) | mm | mm | Ω/km | / | mm | A | mm |
| 25AWG0.2mm² | 40/0.08 (0.58mm) | 1.15 | 119 | 2 | 6.2 | 3 | 37.2 |
| 3 | 6.4 | 3 | 38.4 | ||||
| 4 | 6.7 | 2.3 | 40.2 | ||||
| 6 | 7.6 | 2.1 | 45.6 | ||||
| 8 | 8.4 | 1.9 | 50.4 | ||||
| 12 | 9.9 | 1.8 | 59.4 | ||||
| 21AWG0.5mm² | 3/33/0.08 (1.14mm) | 1.7 | 46.9 | 2 | 7.5 | 7.2 | 45 |
| 3 | 7.8 | 7.1 | 46.8 | ||||
| 4 | 8.2 | 6.6 | 49.2 | ||||
| 6 | 9.5 | 6.1 | 57 | ||||
| 8 | 10.6 | 5.2 | 63.6 | ||||
| 12 | 13.2 | 4.5 | 79.2 | ||||
| 19AWG0.75mm² | 7/20/0.08 (1.24mm) | 1.8 | 29.1 | 2 | 7.7 | 8.1 | 46.2 |
| 3 | 8 | 7.8 | 48 | ||||
| 4 | 8.5 | 7.3 | 51 | ||||
| 6 | 9.8 | 6.6 | 58.8 | ||||
| 8 | 11.2 | 5.7 | 51 |
Note: Above are the standard products also we can on customer requirement.
