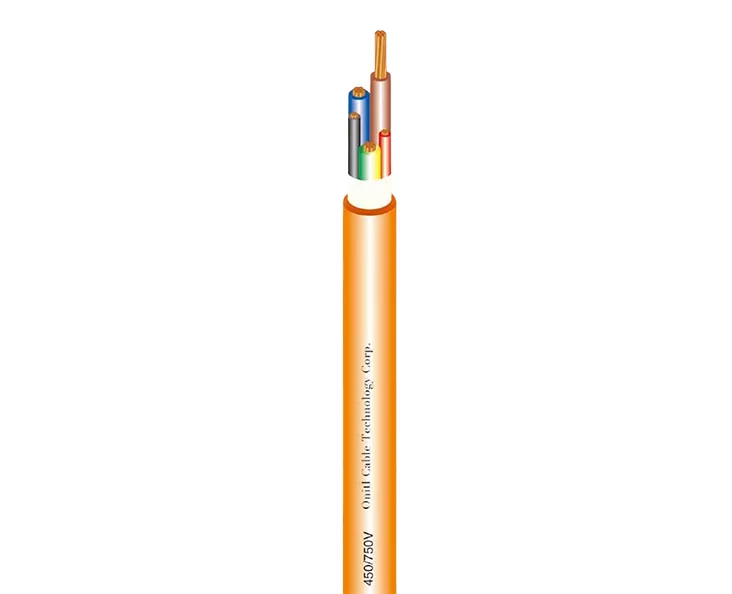

This cable is used for chrging equipment for electric vehicles and charging port, or for control systems of charging saturation,safety warning and other control signal transfer function of the
vehicle charging and discharging.
Flex Resistance
Anti-EMI
Zero Halogen
Oil Resistance耐油
Abrasion Resistance
Low - speed Sharging
-40~+90°℃
RoHS
CE
GB/T33594
Tüv

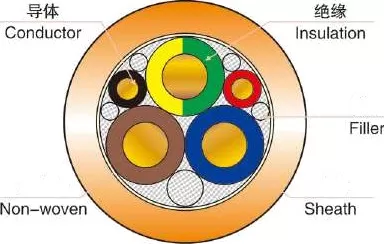

| Conductor | Bare copper | Rated voltage | 450/750V |
| Insulation | Special elastomer | Voltage withstand test | AC2.5kV/5min |
| Sheath | Special elastomer | Insulation resistance | >3670MΩkm(20°℃) |
| Cable composition | Conductor composition | Diameter of insulation | Max.conductor DC resistance(20℃) | Approx.overall diameter | Permisible current |
| mm² | mm | mm | Ω/km | mm | A |
| 3 x 2.5mm²+2 x 0.75mm² | 2.5mm² : 80/0.20 | 3.70 | 7.98 | 13.2 | 16.0 |
| 0.75mm² : 42/0.15 | 2.40 | 26 | |||
| 5 x 2.5mm²+2 x 0.75mm² | 2.5mm²: 80/0.20 | 3.70 | 7.98 | 15.7 | 16.0 |
| 0.75mm² : 42/0.15 | 2.40 | 26 | |||
| 3 x 6.0mm²+2 x 0.75mm² | 6.0mm²: 189/0.20 | 5.10 | 3.3 | 15.7 | 32.0 |
| 0.75mm² : 42/0.15 | 2.40 | 26 | |||
| 5 x 6.0mm²+4 x 0.75mm²(P2) | 6.0mm²: 189/0.20 | 5.10 | 3.3 | 21.5 | 32.0 |
| 0.75mm²: 42/0.15 | 2.40 | 26 | |||
| 5 x 16.0mm²+4 x 0.75mm²(P2) | 16.0mm²: 504/0.20 | 7.20 | 1.21 | 28.3 | 63.0 |
| 0.75mm² : 42/0.15 | 2.40 | 26 |
Note: Above are the standard products also we can design on customer requirement.

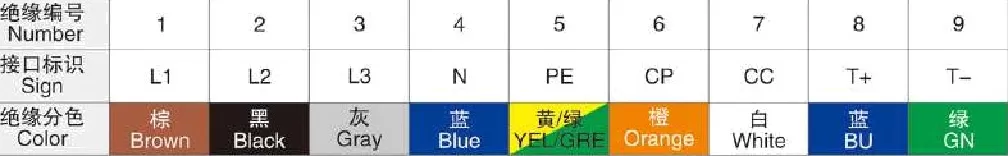

Orange or Black,also we can have other colors from customers' requirements.
