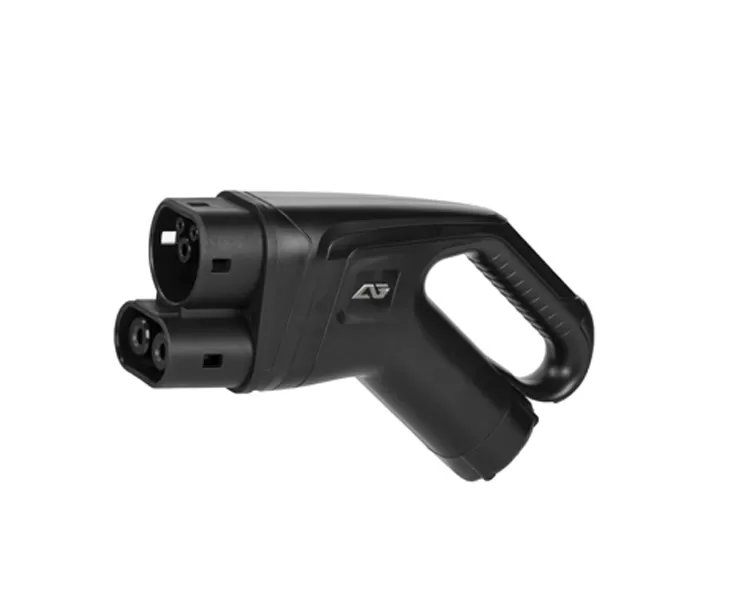

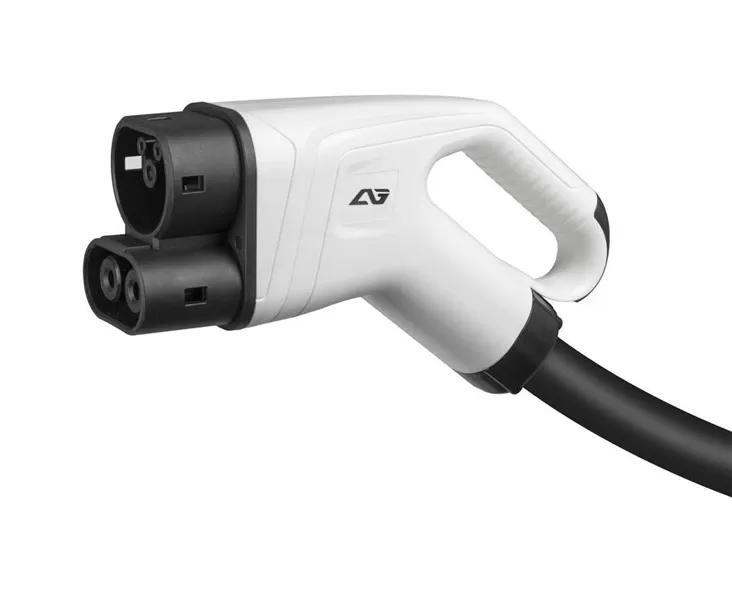

Charging plug meeting 62196-3 IEC SHEET 3-lm standard
Housing massive structure promote protection performance
Product entire insertion and extraction force<100N
Protection class IP55
Mechanical life:no-load plug in/pull out>10000 times
Impact of external force:can afford 1M drop and 2t vehicle run over pressure
Operating temperature
-30°C-+50°C
Case Material:Thermoplastic,flame retardant grade UL94V-0
Contact bush:Copper alloy,silver plating
Rated current:200A
Operation voltage:1000V DC
Insulation resistance:>500MΩ（D1000V）
Terminal temperature rise:<50K
Withstand temperature rise:<50K
Withstand Voltage:3000V
Conform to the provisions and requirements of IEC 62196-3-2022, it can charge all EV manufactured in Europe and USA, correctly and effectively with high compatibility.
Using riveting pressure process with none screw with beautiful appearance. Hand-held design conform to ergonomic principle, plug conveniently.

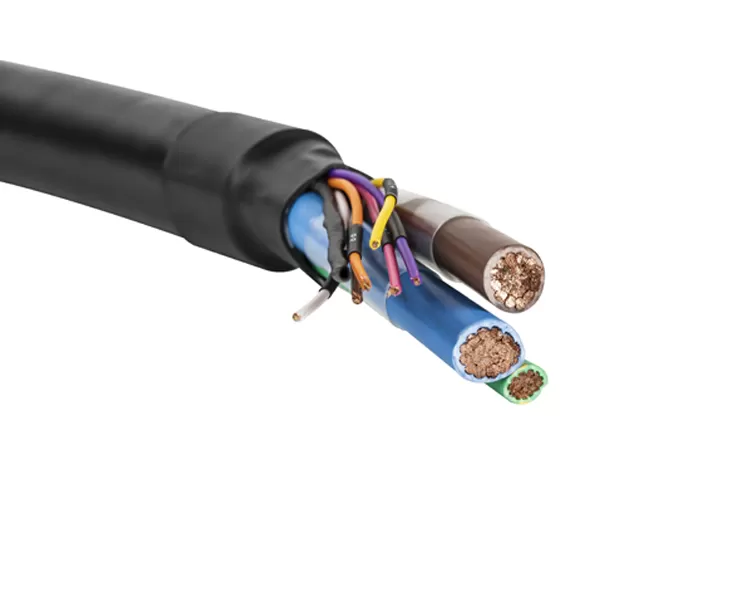

XLPO for cable insulation prolonging the aging resistance life-span. TPU sheath improves the bending life and wear resistance of cable. The best material in the market at present, conforms to the latest European Union standards.
Excellent internal waterproof protection performance, protection grade achieved IP55 (working condition). The shell can effectively insulate water from body and enhance the safety level even in bad weather or special circumstances.
Adopted double color coating technology, custom color accepted (regular color orange, blue, green, grey, white)
Keep the laser logo space for customer. Provide OEM/ODM service to help customer expand market easier
| Product Type | CCS2 EV Charging Cable |
| Rated Current | 80A, 125A, 150A, 200A, 250A, 300A |
| Rated Voltage | 1000V |
| Cable Specification | 2*15mm²+1*25mm²+(6*0.75mm²) (P2) |
2*35mm²+1*25mm²+(6*0.75mm²) (P2) | |
| 2*50mm²+1*25mm²+(6*0.75mm²) (P2) | |
| 2*70mm²+1*25mm²+(6*0.75mm²) (P2) | |
| 2*80mm²+1*25mm²+(6*0.75mm²) (P2) 2*95mm²+1*25mm²+(6*0.75mm²) (P2) | |
| Length | Regular 5 m,custom length accepted |
| Color | grey, white,black, custom color accepted |
| Warranty | 12 months |
| Certificate | CE/TUV(Rheinland) |
| Packaging Details | Standard export wooden case or carton. Or as customer requirements |
| Delivery Time (days) | Within 15days, if quantity >100, to be negotiated |
