Riveting Pressure mode
Mechanical life: no-load plug>10000
Insertion force:<100N
The rated current: 16A,32A
The rated voltage: 250V,440V
Insulation resistance: >1000MΩ(DC500V)
Pins temperature rise:<50K
Withstand voltage: 2000V
Contact impedance: 0.5mΩMax
certification:CE,TUV
standard:NFC61-314
Shell material: thermoplastics, flame retardant grade UL94V-0
Contact-tube: Copper alloy, silver plating
Operating temperature: -30℃~+50℃
Waterproof rate: IP55
Mode 2 charger conforms to the provisions and requirements of NFC61-314.
Type 2 socket 32a and 16a match with Hella actuator locking device.
Have one or two PTC (PT1000) thermistor (can match with NTC or Temperature control switch).

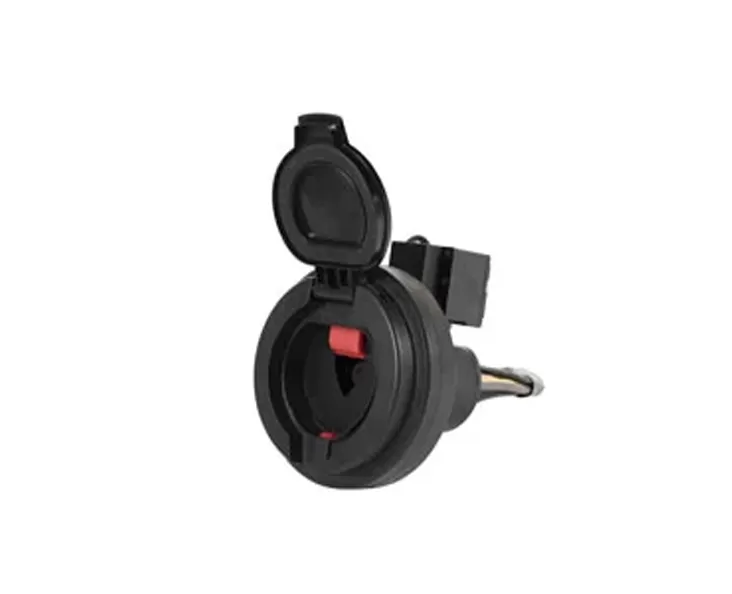

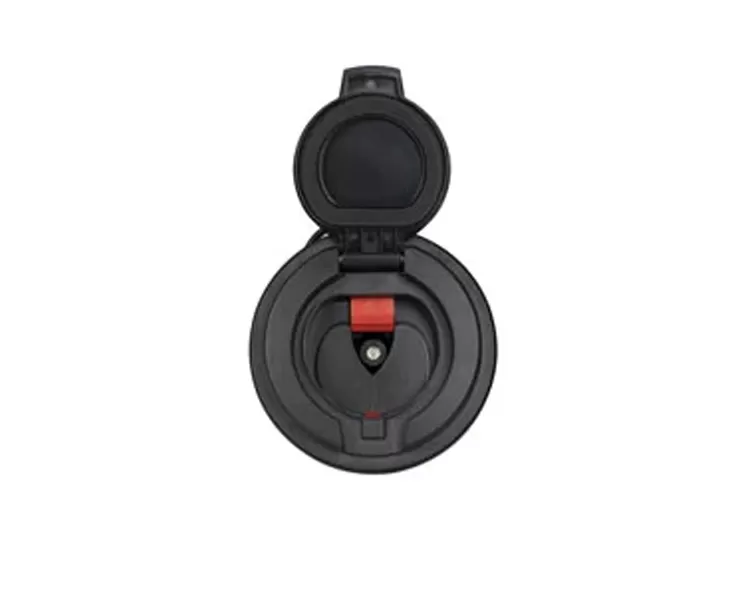

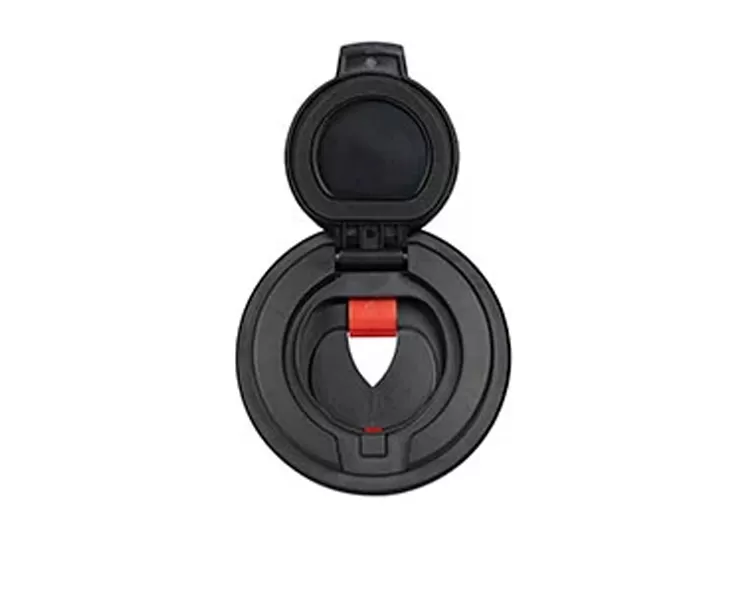

Our ev socket with beautiful appearance and prevention cap, which can be installed on the left side, the right side or the front of it.
Reliable material, flame retardant, pressure proof, wear-resisting, vimpact resistance, high oil proof.
Excellent protection performance, protection grade achieved IP55 (working condition) .
This type 2 ev charging socket has wide applications. For Tesla model3, for Tesla Model S, for Tesla Model X, for BAIC EU-Series, for BYD Yuan/S2 EV, for BYD e5, for Chevrolet Volt, for Mia, for Mia Electric Van, for Mitsubishi OUTLANDER PHEV, for Nissan NV200 SE Van, for Nissan leaf, for SAIC Baojun E-Series, for SAIC Roewe Ei5 EV, for BMW 530e/Le, for Renault Zoe, for Hyundai Kona EV, for BMW i3, for BYD Tang PHEV, for Chery eQ EV, for Toyota Prius PHEV, for Volkswagen e-Golf, for Geely Emgrand EV, for Great Wall Ora R1 EV.
| Product Type | TYPE2 EV Charging Socket |
| Connection Mode | Riveting pressure mode |
| Rated Current | 16A, 32A, 40A |
| Rated Voltage | 250V, 440V |
| Length | The wire length and end of treatment are according to the customer requirement Color Black, white, custom color accepted |
| Warranty | 12 months |
| Certificate | CE/TUV(Rheinland) |
| Packaging Details | Standard export packaging. Or as customer requirements |
| Supply Ability | 4000 pieces per month |
| Delivery Time(days) | Within 10days, if quantity>100, to be negotiated |
