Mechanical life: no-load plug>10000times
Impact of external force: can afford 1m drop and 2t vehicle run over pressure.
The rated current: 16A、32A
The rated voltage: 250V
Insulation resistance: >1000MΩ(DC500V)
Pins temperature rise:<50K
Withstand voltage: 2000V
Contact impedance: 0.5mΩMax
Shell Material: thermoplastics, flame retardant grade UL94-V0
Pin: Copper alloy, silver
Operating temperature: -30℃~+50℃
Conform to the provisions and requirements of IEC62196-2 2016 2-llb, it can charge all EV manufactured in Europe and USA, correctly and effectively with high compatibility.
Using riveting pressure process with none screw with beautiful appearance. Hand-held design conform to ergonomic principle, plug conveniently.
XLPO for cable insulation prolonging the aging resistance life-span. TPU sheath improves the bending life and wear resistance of cable. The best material in the market at present, conforms to the latest European Union standards.
Excellent internal waterproof protection performance, protection grade achieved IP55 (working condition). The shell can effectively insulate water from body and enhance the safety level even in bad weather or special circumstances.
Adopted double color coating technology, custom color accepted (regular color orange, blue, green, grey, white)
Keep the laser logo space for customer. Provide OEM/ODM service to help customer expand market easier
For Tesla model3, for Tesla Model S, for Tesla Model X, for BAIC EU-Series, for BYD Yuan/S2 EV, for BYD e5, for Chevrolet Volt, for Mia, for Mia Electric Van, for Mitsubishi OUTLANDER PHEV, for Nissan NV200 SE Van, for Nissan leaf, for SAIC Baojun E-Series,for SAIC Roewe Ei5 EV, for BMW 530e/Le, for Renault Zoe, for Hyundai Kona EV,for BMW i3, for BYD Tang PHEV, for Chery eQ EV, for Toyota Prius PHEV, for Volkswagen e-Golf, for Geely Emgrand EV,for Great Wall Ora R1 EV.
Commercial EV Charging/Workplace EV Charging, Hotels EV Charginh, Home/Residential EV Charging, Public EV charging

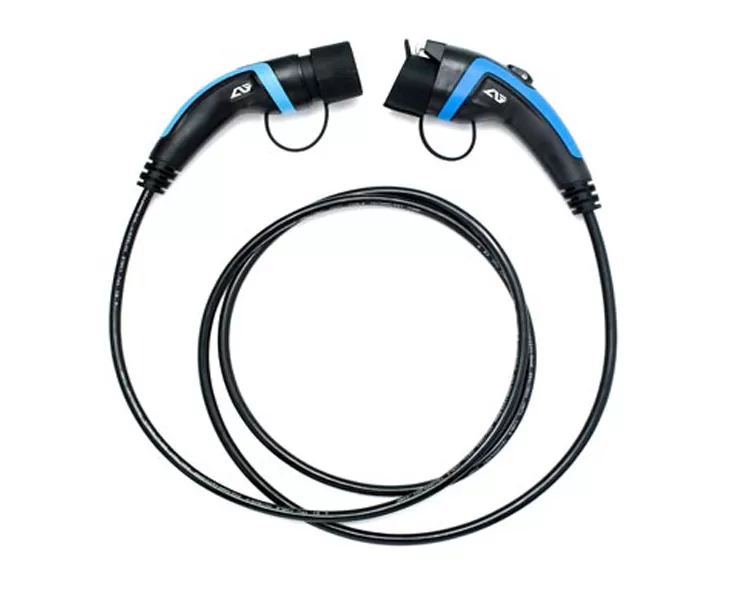

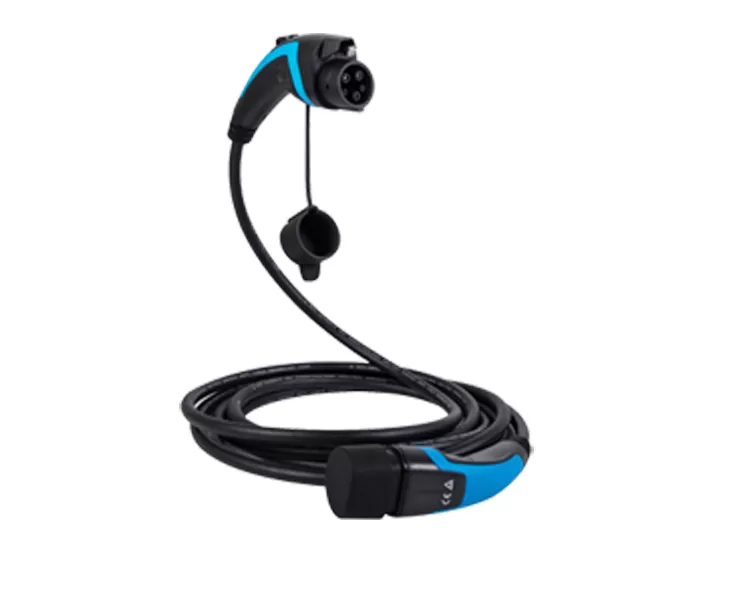

EV Charging Cable Type 2-Type1 is ideal for charging your electrical car Type2-Type1 to a maximum power of 7.4 KW.
Type 1 to type 2 ev cable can charge all EV manufactured in Europe, correctly and effectively. It is compatible with all the charging stations type2.

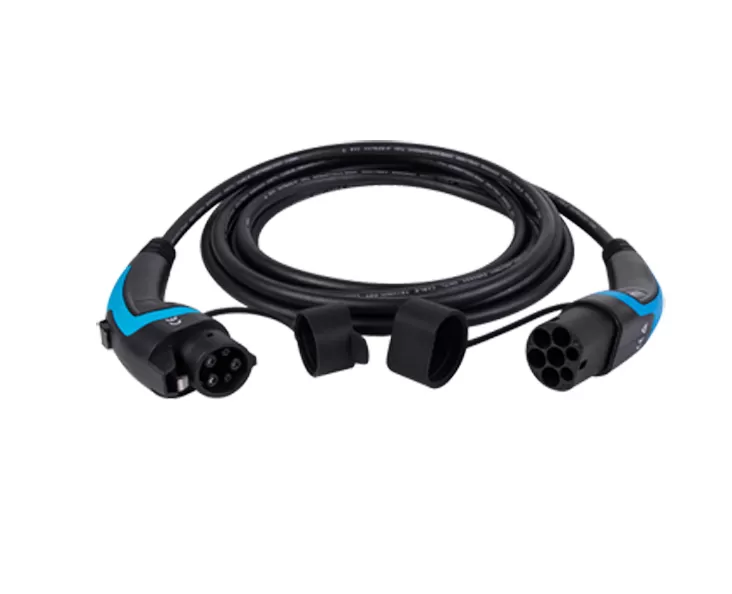

Type 1 to type 2 charging cable has one type of connector 2 to the charging pile and another TYPE 2-Type1 for electric vehicle.
If you plug ev cable type 1 to type 2 into a more powerful charging pile/station such as 7.4 KW, type 2 to type 1 cable will automatically apply the recharge power 7.4 KW.
Similarly, if you plug mode 2 charging cable into a lower power charging pile/station, the charging pile/station will also limit the charging power in this case. Our users don't need to worry about the power safe problem when you charging.
AG ELECTRICAL EV Charging cable Type2-Type1 acquires all safety and production certificates in electrical filed,ISO9001, ISO 14001, OHSAS 18001, TUV(Rheinland)/IEC 62196&EN50620.
| Product Type | TYPE2-TYPE1 EV Charging Cable |
| Rated Current | 16A, 32A |
| Rated Voltage | 250V |
| Power | 3.7KW, 7.4KW |
| Phase | One Phase/Single Phase, Three Phase |
| Cable Specification | H07BZ5-F3X2.5mm²+2x0.5mm² |
| H07BZ5-F3X6mm²+2x0.5mm² | |
| Length | Regular 5 m,custom length accepted |
| Color | orange,blue,green,grey, white, custom color accepted |
| Warranty | 12 months |
| Certificate | CE/TUV(Rheinland) |
| Packaging Details | Standard export wooden case or carton. Or as customer requirements |
| Delivery Time (days) | Within 15days, if quantity >100, to be negotiated |
