Bending Resistance
Running speed:≤4m/s
Travelling height: ≤60m
Loop diameter:≤1000mm
-15~+70℃
3 million bending test
RoHS
UL62

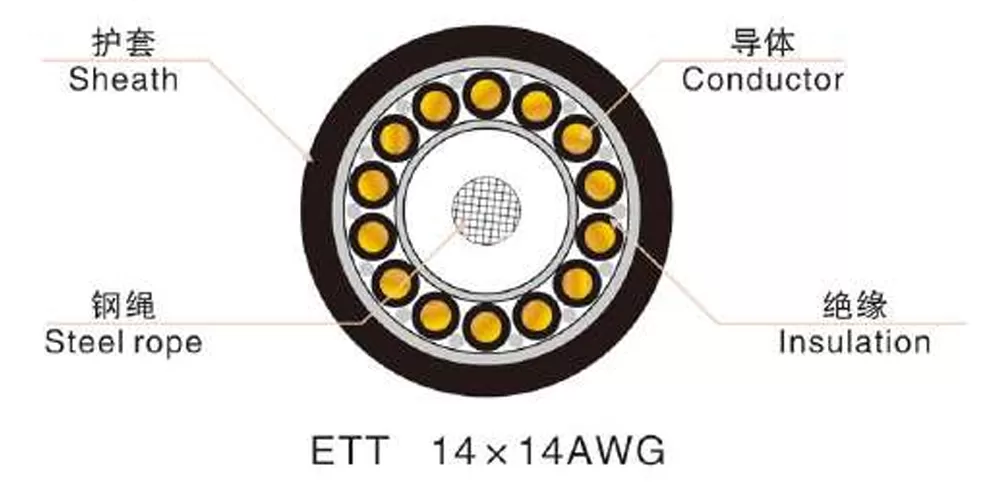

| Conductor | Copper |
| Insulation | PVC |
| Shield | Copper or Tinned copper |
| Sheath | PVC for elevator cable |
| Rated voltage | 300/500V |
| Voltage withstand test | 2000V/5min |
Note: Cables are recommender for installations where the suspended length exceed 60m,We could add steel rope and the speed of travel doesn't exceed 6m/s.
