Mechanical life: no-load plug>10000times
Insertion force:<100N
Shell material: thermoplastics, flame retardant grade UL94-0
Contact - tube: copper alloy, silver plated
Operating temperature: -30℃~+50℃
The rated current: 10A, 16A, 32A, 63A
The rated voltage: 250V/440V
Insulation resistance: > 1000MΩ(DC500V)
Pins temperature rise:<50K
Withstand voltage: 2500V
Contact impedance: 0.5mΩMax
Conform to the provisions and requirements of <Connection set for conductive charging of electric vehicles> GB/ T 20234.2-2015.
Have a electromagnetic locking device (can match with hela lock), have functions of signal feedback.
Have one or two PTC (PT1000) thermistor (can match with hela lock), have functions of signal feedback.

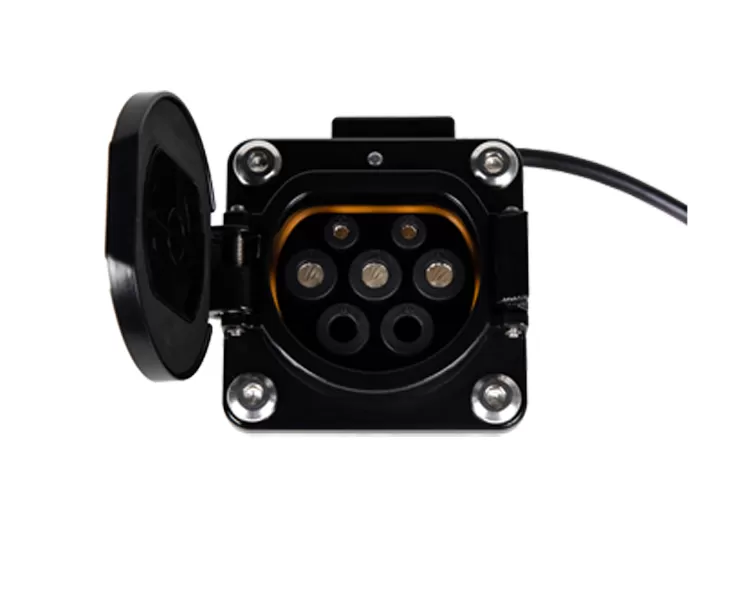

Beautiful appearance, prevention cap can be installed on the left side, the right side or the front of it.
Reliable material, flame retardant, presssure proof, wear-resisting, impact resistance, high oil proof .
Excellent protection performance, prodection grade achieved IP55 (working condition).
| Product Type | Rated Curent/ Voltage | Cable Specifications | Note |
| AG-GBAC-Z10S | 10A/250V | HO7BZ5-F3X2.5mm2+2x0.75mm2 | The wire length a end of treatment are according to the customer requirement. |
| AG-GBAC-Z16S | 16A/250V | H07BZ5-F3X2.5mm2+2x0.75mm2 | |
| AG-GBAC-Z16S-3 | 16A/440V | H07BZ5-F5X2.5mm2+2x0.75mm2 | |
| AG-GBAC-Z32S | 32A/250V | HO7BZ5-F3X6mm2+2x0.75mm2 | |
| AG-GBAC-Z32S-3 | 32A/440V | H07BZ5-F5X6mm2+2x0.75mm2 | |
| AG-GBAC-Z63S-3 | 63A/440V | H07BZ5-F5X16mm2+2x0.75mm2 |
