Mechanical life: no-load plug>10000times
Impact of external force: can afford 1m drop and 2T vehicle run over pressure
Shell material: thermoplastics, TPU
Retardant grade UL94-V0.
Pin: Copper alloy, silver + top of the thermoplastics
Operating temperature: - 30°C ~+50°C
The rated current: 80A, 125A, 150A, 200A, 250A, 300A
The rated voltage: 1000V
Insulation resistance: >2000MQΩ(DC1000V)
Pins temperature rise:<50K
Withstand voltage: 4500V(DC+/DC-/PE)
Contact impedance: 0.5mΩMax
Conform to the provisions and requirements of <Connection set for conductive charging of electric vehicles> GB/T 20234.2-2015.
Have a electromagnetic locking device, have functions of signal feedback.
Have one or two PTC (PT1000) thermistor (can match with NTC or Temperature control switch).
The head of pins using safety insulation design to prevent direct contact with the hand.
Excellent protection performance, prodection grade achieved IP55 (working condition).
Applied double color coating technology, personalized custom a variety of colors.

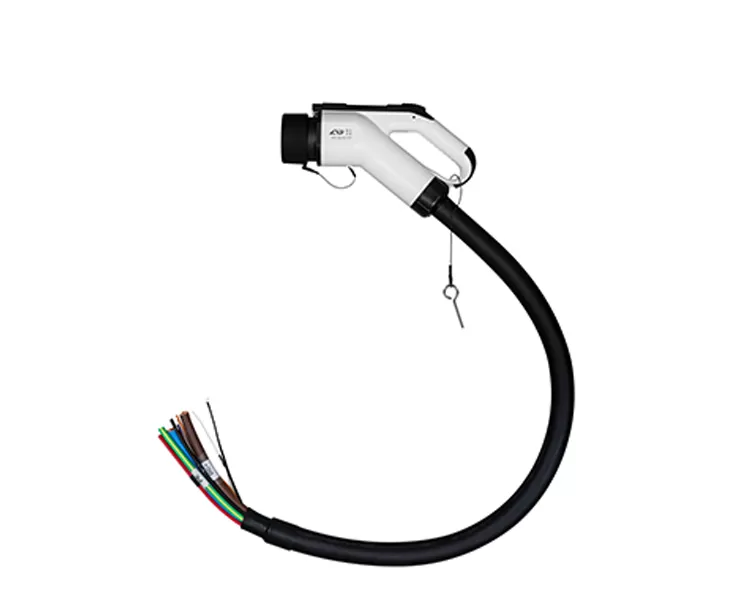

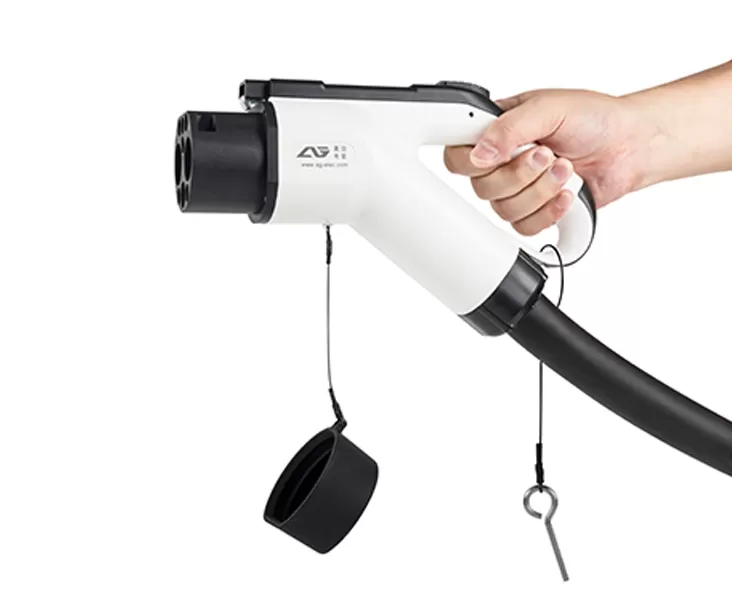

| Product Type | EV Charging Cable |
| Rated Current | 80A, 125A, 150A, 200A, 250A, 300A |
| Rated Voltage | 1000V |
| Length | Regular 5m, can be customized |
| Color | Black or white |
| Warranty | 12 months |
| Certificate | CANS |
| Packaging Details | Standard export wooden case or carton, can be customized |
| Delivery Time(days) | Within 15 days, if qty is over 500pcs, to be negotiated |
